Flexible Solutions for Groundwater Abstraction
Our Wellman has been designed to be a permanent solution replacing rigid steel, PVC, or fiberglass piping when abstracting groundwater from wells. Used with an electric submersible pump, the lay-flat hoses provide a safe, high-performing, and cost-efficient solution to your next project.
These flexible risers provide for rapid installation and retrieval of the submersible pump. Both Wellman 120 and Wellman 300 come in a single length, specific to the required pump settings. This allows for flexible installations by hand, crane, or vehicle. The umbilical is attached through loops on the band along the hose.
Unlike more traditional methods, our hoses will have zero corrosion and no build-up of scale. Our high-quality materials are resistant to hydrocarbon fuels, several chemicals, ozone, UV, and microbial attacks.
A Smarter Way to Abstract Groundwater
Wellman has several benefits differentiating it from conventional alternatives, these are some of them:
Explore Wellman 120 and Wellman 300
Wellman 120

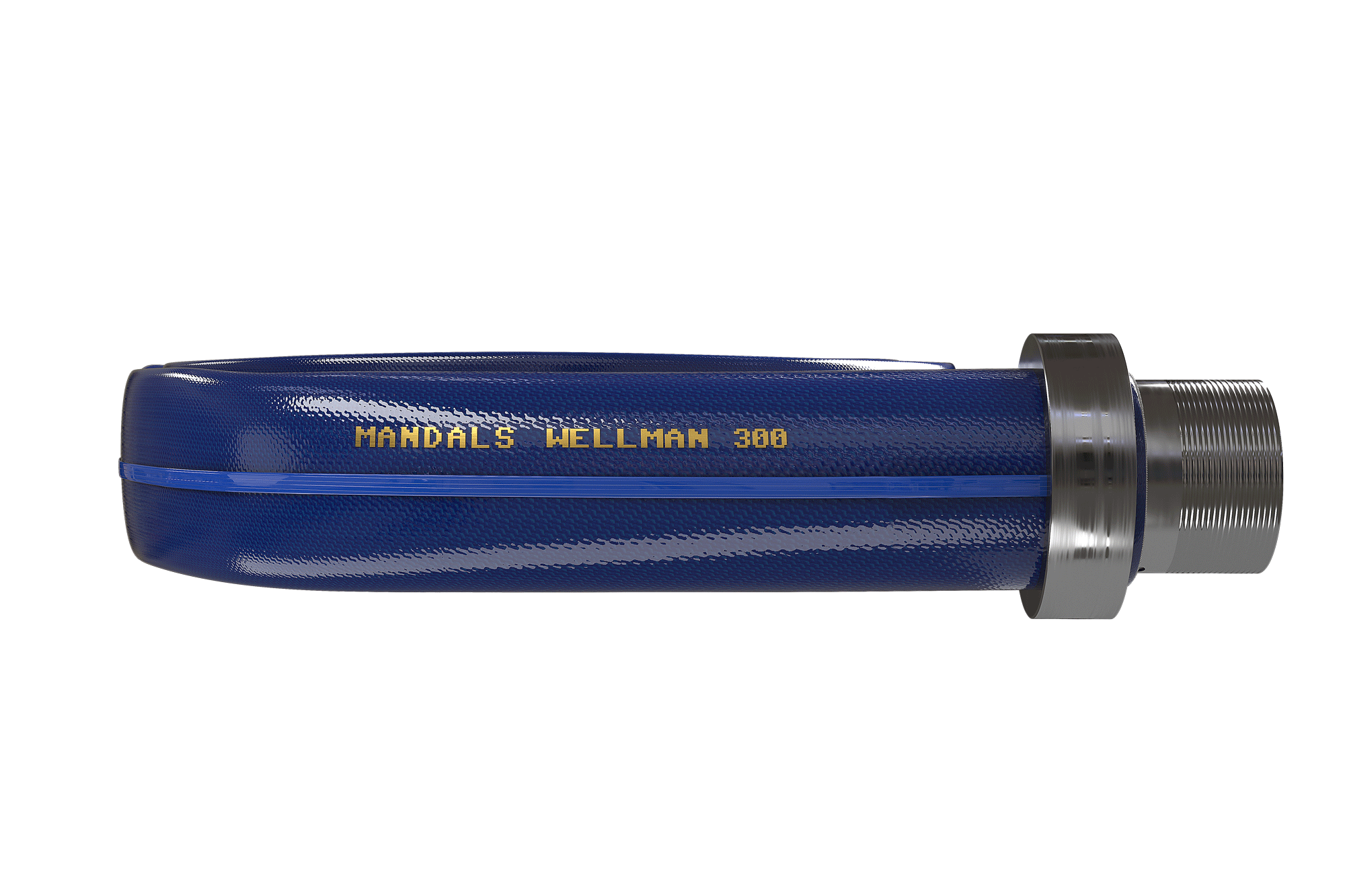

Wellman 300
Wellman 120
Wellman 300
Product Specifications
Primary Uses & Applications
Wellman 120
- Domestic systems
- Light industrial application
- Environmental testing
- Well testing
- Golf courses
Wellman 300
- Groundwater abstraction – potable and brackish
- Water supply wells in R.O. desalination plant applications
- Food processing
- Irrigation/ agriculture
- Environmental monitoring
- Mine de-watering
- Land stabilization
- Solar power systems
- Offshore rig fire water and service pumps
Color Options
- Blue (standard – Wellman 300)
- Black (standard – Wellman 120)
Lengths and Diameters
We offer a range of diameters and lengths for this hose, depending on the version. The diameters range from 32mm to 152mm, and for some diameters, the hose can be delivered in lengths up to 120m for Wellman 120 and 300m for Wellman 300.
Operating Temperature
The hose has been developed to perform in different weather and environments, with an operating temperature from -40°C to + 50°C (-40°F to +122°F ) for pure water.
Valid Certificates
North and South America
Germany
Germany
Poland
Australia and New Zealand
UK and Ireland
Wellman 120
|
Diameter
|
mm | 32 mm | 51 mm |
| inch | 1 1/4 ” | 2″ | |
|
Wall thickness
|
mm | 2.2 | 2.4 |
| inch | 0.09 | 0.09 | |
|
Maximum pump setting
|
m | 120 | 120 |
| ft | 400 | 400 | |
|
Burst pressure
|
bar | 50 | 48 |
| psi | 725 | 700 | |
|
Maximum operating pressure
|
bar | 25 | 24 |
| psi | 365 | 350 | |
|
Effective tensile strength
|
kg | 2.000 | 3.100 |
| lb | 4.400 | 6.850 | |
|
Maximum continuous end load
|
kg | 800 | 1.200 |
| lb | 1.770 | 2.650 | |
|
Weight (Hose only)
|
m | 0.31 | 0.50 |
| ft | 0.21 | 0.34 | |
|
Weight (Mandals coupling)
|
kg | 0.3 | 0.6 |
| lb | 0.6 | 1.2 | |
|
Mandals coupling O/D
|
mm | 59 | 80 |
| inch | 2.3 | 3.1 | |
| Maximum extension under load conditions | % | 2 | |
| Maximum diameter swell | % | 20 | |
|
Operational temperature range
|
ºC | -40 to + 50 (with intermittent use up to 80) | |
| ºF | -40 to + 120 (with intermittent use up to 176) | ||
|
Water quality Below 30 ºC / 86 ºF Above (or equal) 30 ºC / 86 ºF
|
pH
|
4 – 9 | |
| 5 – 9 | |||
|
Pressure loss at maximum flow
|
bar | 2 | |
| psi | 29 | ||
|
Velocity at maximum flow
|
m/s | 2.9 | 3.7 |
| f / s | 1 | 1.3 | |
|
Velocity flow rate a nominal 120m / 400 ft pump setting
|
l/s | 2.9 | 9.2 |
| gpm | 44 | 146 | |
Wellman 300
|
Diameter
|
mm | 51 mm | 76 mm | 102 mm | 127 mm | 152 mm |
| inch | 2″ | 3″ | 4″ | 5″ | 6″ | |
|
Maximum pump setting
|
mm | 300 | 300 | 300 | 280 | 280 |
| ft | 1.000 | 1.000 | 1.000 | 930 | 930 | |
|
Burst pressure
|
bar | 62 | 62 | 62 | 58 | 58 |
| psi | 900 | 900 | 900 | 840 | 840 | |
|
Maximum operating pressure
|
bar | 31 | 31 | 31 | 29 | 29 |
| psi | 450 | 450 | 450 | 420 | 420 | |
|
Effective tensile strength
|
kg | 4.600 | 8.000 | 14.000 | 20.000 | 23.000 |
| lb | 10.150 | 17.650 | 31.000 | 44.100 | 50.700 | |
|
Maximum continuous end load
|
kg | 1.800 | 3.200 | 5.600 | 8.000 | 9.200 |
| lb | 4.000 | 7.050 | 12.350 | 17.650 | 20.300 | |
|
Weight (Hose only)
|
m | 0.7 | 1.0 | 1.6 | 2.0 | 2.5 |
| ft | 0.5 | 0.7 | 1.1 | 1.3 | 1.7 | |
|
Weight (Mandals coupling)
|
kg | 1.4 | 3.4 | 6.3 | 11.3 | 15.6 |
| lb | 3.1 | 7.5 | 13.9 | 25.0 | 34.4 | |
|
Mandals coupling O/D
|
mm | 80 | 115 | 145 | 177 | 200 |
| inch | 3.1 | 4.5 | 5.7 | 7.0 | 8.0 | |
| Maximum extension under load conditions | % | 2 | ||||
| Maximum diameter swell | % | 15 | ||||
|
Operational temperature range
|
ºC | – 40 to + 50. (with intermittent use up to 80) | ||||
| ºF | – 40 to +122 (with intermittent use up to 176) | |||||
|
Water quality Below 30 ºC / 86 ºF Above (or equal) 30 ºC / 86 ºF
|
pH
|
4 – 9 | ||||
| 5 – 9 | ||||||
|
Pressure loss at maximum flow
|
bar | 2 | ||||
| psi | 29 | |||||
|
Velocity at maximum flow
|
m/s | 2.4 | 3.0 | 3.0 | 4.2 | 4.5 |
| f / s | 8 | 10 | 10 | 14 | 15 | |
|
Velocity flow rate a nominal 120m / 400 ft pump setting
|
l/s | 8 | 18 | 41 | 78 | 105 |
| gpm | 127 | 285 | 650 | 1.238 | 1.665 | |
