Versions
Available in lengths up to
Premium Fluid Transfer Hoses
The Flexitex series consists of premium lay-flat hoses made from a blend of nitrile rubber and PVC, with an added UV barrier to prevent damage from UV radiation. The hose is ideal for use as a feeder hose for any type of water transfer application.
Made to Perform
Flexitex is made to be the ideal rubber fluid transfer hose, for agriculture and other industries. With a premium blend of nitrile rubber and PVC, this hose offers flexibility as well as is easy to deploy and store. It’s made from a reinforced jacked of filament polyester yarn that the rubber blend has been extruded through – this gives a very strong adhesion between the cover and lining. The rubber blend has excellent chemical resistance and little or no reaction to H2S or saline content.
Explore the Flexitex Series
Flexitex Standard
Flexitex Extra
Flexitex Standard
Flexitex Extra
Product Specifications
Primary Uses & Applications

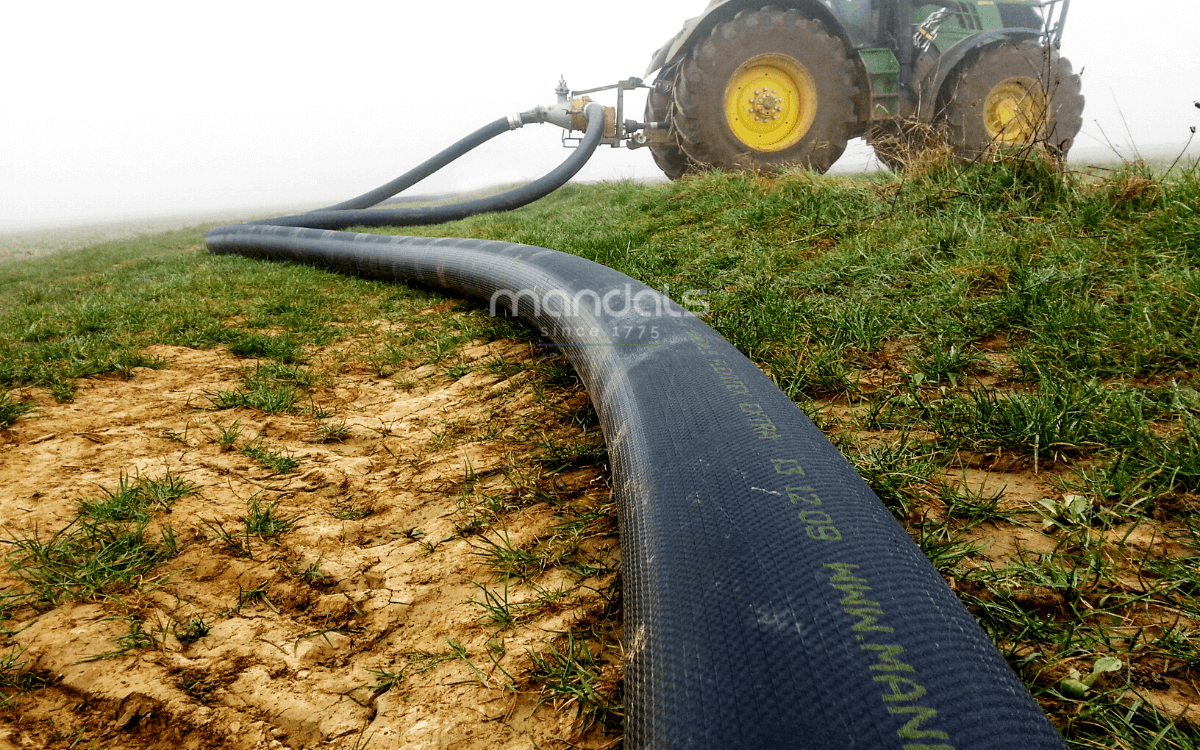

- Feeder hose for any type of water transfer applications
- General water transfer hose for non-flammable liquids in construction, mining and industry
- Supply hose for irrigation
- Feeder hose for slurry systems
- Drill water supply
- Used as a flexible pipeline for industrial firefighting teams
Color Options
- Black (standard)
Lengths and Diameters
We offer a range of diameters and lengths for this hose, depending on the version. The diameters range from 38mm to 151mm, and for some diameters the hose can be delivered in lengths up to 200m.
Operating Temperature
The hose has been developed to perform in different weather and environments, with a operating temperature from -30°C to +75°C ( -22°F to +167°F). Intermittent use up to +80°C (+176°F).
Flexitex Standard
| INTERNAL DIAMETER | WALL THICKNESS | WEIGHT | BURST PRESSURE | TENSILE STRENGTH | |||||
| Inch | mm | Inch | mm | Lbs / Ft | Kg / m | Psi | Bar | x 1000 Lbs | Tons |
| 2 | 51.0 + 2.0 | 0.09 | 2.2 | 0.29 | 0.43 | 665 | 46 | 8.4 | 3.8 |
| 2 1/2 | 65.0 + 2.0 | 0.09 | 2.2 | 0.36 | 0.53 | 665 | 46 | 9.3 | 4.2 |
| 3 | 76.0 + 2.0 | 0.10 | 2.5 | 0.49 | 0.73 | 665 | 46 | 11.5 | 5.2 |
| 3 1/2 | 90.0 + 2.0 | 0.11 | 2.7 | 0.67 | 1.00 | 610 | 42 | 17.6 | 8.0 |
| 4 | 102.0 + 2.5 | 0.11 | 2.7 | 0.74 | 1.10 | 610 | 42 | 25.1 | 11.4 |
| 5 | 127.0 + 3.0 | 0.12 | 3.0 | 1.01 | 1.53 | 610 | 42 | 32.2 | 14.6 |
| 6 | 150.0 + 3.0 | 0.14 | 3.5 | 1.24 | 1.85 | 535 | 37 | 35.5 | 16.1 |
| 6 | 152.0 + 4.0 | 0.14 | 3.6 | 1.31 | 1.95 | 610 | 42 | 37.5 | 17.0 |
Note: Safety BP/WP is 2:1 (50%). For all non-hazard and/or non-flammable liquids.
Flexitex Extra
| INNER DIAMETER | WALL THICKNESS | WEIGHT | BURST PRESSURE | TENSILE STRENGTH | |||||
| Inch | mm | Inch | mm | Lbs / Ft | Kg / m | Psl | Bar | x 1000 Lbs | Tons |
| 3 | 76 + 2.0 | 0.12 | 3.1 | 0.64 | 0.95 | 720 | 50 | 20.1 | 9.1 |
| 3 1/2 | 90 + 2.5 | 0.13 | 3.3 | 0.79 | 1.18 | 640 | 44 | 22.3 | 10.1 |
| 4 | 102 + 2.5 | 0.13 | 3.3 | 0.80 | 1.20 | 610 | 42 | 25.1 | 11.4 |
| 4 1/2 | 114 + 3.0 | 0.13 | 3.4 | 1.04 | 1.55 | 610 | 42 | 27.6 | 12.5 |
| 5 | 127 + 3.0 | 0.14 | 3.6 | 1.15 | 1.71 | 610 | 42 | 34.7 | 15.7 |
| 6 | 150 + 3.0 | 0.15 | 3.8 | 1.41 | 2.10 | 610 | 42 | 37.5 | 17.0 |
| 6 | 152 + 4.0 | 0.15 | 3.8 | 1.43 | 2.13 | 610 | 42 | 37.5 | 17.0 |
Note: Safety BP/WP is 2:1 (50%). For all non-hazard and/or non-flammable liquids.
Agriculture Catalog
Want more in-depth knowledge about our lay-flat hoses for drag, supply, and irrigation lines? Maybe you want to know more about the difference between drag hoses and slurry tanks? Well, we got you covered in our agriculture catalog.
Mining Catalog
Want more in-depth knowledge about our lay-flat hoses for water management systems? Well, we got you covered in our mining catalog.
